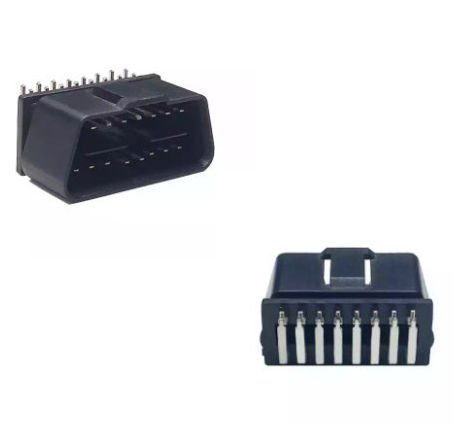

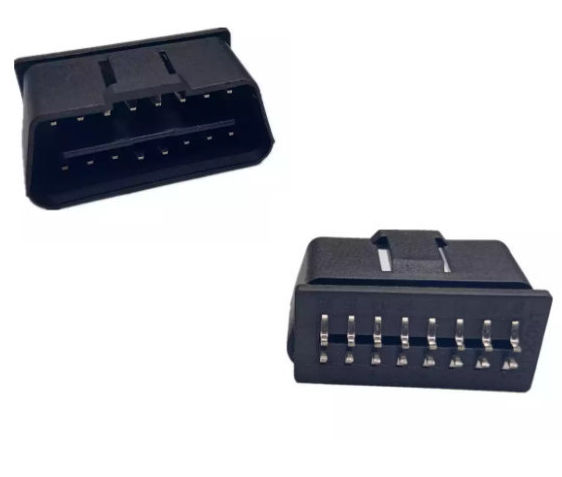

OBD2 Male Connector for PCB | OBD2 Male Angle 90 Degree Connector for PCB |
|
|

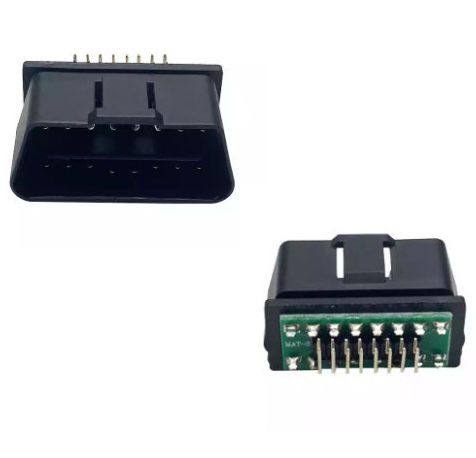

OBD2 Male Angle 90 Degree Connector with PCB | OBD2 Male Angle 90 Degree Connector with PCB |
|
|

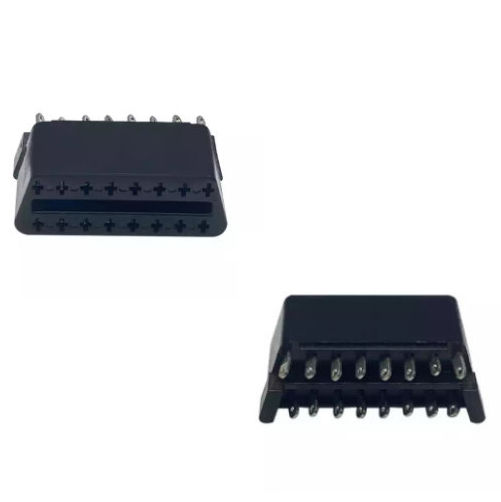

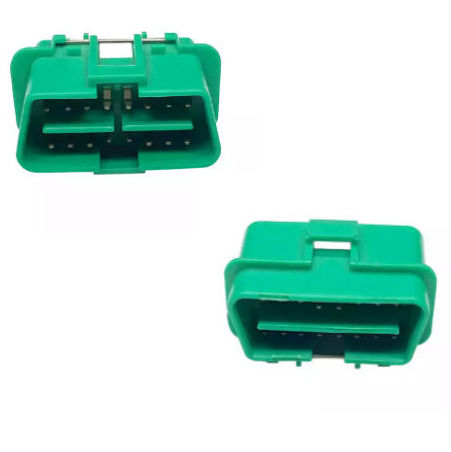

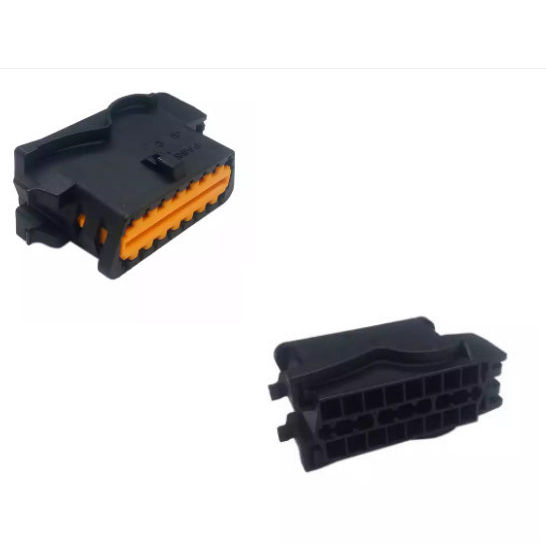

OBD2 16pin Female Connector | OBD2 Male 16Pin Connector 24V |
OBD2/OBDII Connector Solutions: Reliable, Custom & Certified by Cactus Electronics
In the modern automotive diagnostics and telematics landscape, the OBD2 (On-Board Diagnostics II) connector stands as the universal gateway to vehicle data, enabling seamless communication between onboard control units, diagnostic tools, telematics devices, and fleet management systems. As a trusted global manufacturer with 17+ years of specialized experience in automotive connectivity solutions, Cactus Electronics delivers premium OBD2/OBDII connectors, cable assemblies, and custom wiring harnesses that meet strict industry standards, withstand harsh operating environments, and cater to the diverse needs of automotive OEMs, diagnostic tool makers, fleet operators, and aftermarket service providers. Our OBD2/OBDII connector products are engineered for uncompromising performance, compliance, and versatility, making us a top partner for businesses seeking reliable, future-ready automotive diagnostic connectivity.
Why OBD2/OBDII Connectors Matter for Modern Automotive Applications
Since the global mandate for standardized OBD2 systems, the OBD2/OBDII connector (SAE J1962 compliant) has become an indispensable component across passenger vehicles, light-duty trucks, commercial fleets, and specialty automotive equipment. This 16-pin standardized connector serves as the primary interface for reading diagnostic trouble codes (DTCs), monitoring real-time engine performance, conducting emissions testing, enabling ECU/TCU tuning, and integrating telematics and fleet tracking devices. For automotive businesses, the quality and reliability of OBD2/OBDII connectors directly impact diagnostic accuracy, equipment compatibility, regulatory compliance, and overall operational efficiency. A subpar OBD2 connector can lead to signal interference, connection failures, inaccurate data readings, and costly downtime—risks that Cactus Electronics eliminates with precision-engineered, rigorously tested solutions.
Cactus Electronics: A Trusted Name in OBD2/OBDII Connector Manufacturing
Cactus Electronics has established itself as a leading manufacturer of OBD2/OBDII connectors and related cable assemblies, backed by globally recognized certifications, state-of-the-art production facilities, and a relentless focus on quality and customer satisfaction. We hold ISO 9001, IATF 16949, and UL certifications, adhering to the strictest automotive industry quality and safety standards to ensure every OBD2 connector we produce meets or exceeds SAE J1962 specifications and global regulatory requirements. Our manufacturing process integrates automated cutting, crimping, assembly, and testing equipment, paired with manual precision for custom configurations, guaranteeing consistent quality across small-batch prototypes and large-scale mass production orders.
With a deep understanding of automotive diagnostics, telematics, and aftermarket needs, we design our OBD2/OBDII connectors to deliver exceptional durability, signal integrity, and compatibility. All products undergo 100% post-production testing, including continuity checks, insulation resistance testing, vibration resistance testing, and environmental stress testing, to ensure zero defects and reliable performance in extreme temperatures, high-vibration environments, and exposure to dust, moisture, and automotive fluids. This commitment to quality has made Cactus Electronics a preferred supplier for clients across North America, Europe, Asia, and beyond, serving OEMs, diagnostic tool manufacturers, fleet management companies, and automotive aftermarket businesses.
Our Comprehensive OBD2/OBDII Connector Product Portfolio
Cactus Electronics offers a full range of OBD2/OBDII connector solutions to match diverse application requirements, from standard off-the-shelf components to fully customized assemblies. Our product lineup caters to diagnostic tools, ECU programming, fleet telematics, vehicle tracking, emissions testing, and automotive tuning applications, ensuring seamless compatibility with all OBD2-equipped vehicles worldwide.
1. Standard OBD2/OBDII Connectors & Cable Assemblies
Our standard OBD2 connectors feature the industry-standard 16-pin SAE J1962 design, available in male, female, right-angle, and straight configurations to suit different installation needs. Paired with high-quality copper conductors and durable insulation, our OBD2 cable assemblies ensure stable data transmission and long service life. We offer pre-assembled OBD2 cables in custom lengths, with options for stripped ends, ring terminals, or compatible connectors for quick integration with diagnostic scanners, telematics devices, and ECU tools.
2. Custom OBD2/OBDII Connector Harnesses
At Cactus Electronics, customization is a core strength for OBD2/OBDII solutions. We design bespoke OBD2 connector harnesses tailored to our clients’ unique specifications, including custom wire gauges, connector types, length adjustments, and integrated features like T-splitters, fuses, and shielding for EMI/RFI interference protection. Our custom OBD2 harnesses are ideal for specialized telematics setups, fleet diagnostic systems, ECU tuning tools, and proprietary diagnostic equipment, ensuring a perfect fit and optimal performance for any application.
3. Heavy-Duty & Rugged OBD2 Connectors
For commercial trucks, construction equipment, agricultural machinery, and harsh-environment applications, we offer ruggedized OBD2/OBDII connectors with IP67/IP68 waterproof and dustproof ratings. These heavy-duty connectors feature corrosion-resistant terminals, reinforced housing, and secure locking mechanisms to withstand the rigors of off-road use, constant vibration, and exposure to harsh weather and chemicals—maintaining reliable connectivity in even the toughest conditions.
4. OBD2 Adapter Connectors & Extension Cables
We also provide OBD2 adapter connectors and extension cables to solve installation challenges, including OBD2 to J1939, OBD2 to J1708, and OBD2 to RP1226 adapters for commercial vehicle compatibility. Our extension cables extend the reach of OBD2 devices without signal loss, making them perfect for fleet diagnostic bays, mobile repair services, and in-vehicle telematics installations.
Key Advantages of Cactus Electronics OBD2/OBDII Connectors
Unmatched Compatibility & Standard Compliance
All our OBD2/OBDII connectors are fully compliant with SAE J1962 standards, ensuring universal compatibility with all OBD2-equipped vehicles manufactured globally since 1996. This eliminates compatibility issues and ensures seamless integration with diagnostic scanners, telematics devices, ECU programmers, and emissions testing equipment.
Superior Durability & Longevity
We use high-grade materials, including pure copper conductors, heat-resistant insulation, and impact-resistant plastic housing, to ensure our OBD2 connectors withstand repeated insertions, temperature fluctuations, and harsh automotive environments. Corrosion-resistant gold-plated terminals guarantee stable electrical connections and prevent signal degradation over time.
Enhanced Signal Integrity
Our OBD2 connectors and cable assemblies feature optimized wiring and optional EMI shielding, minimizing electromagnetic interference and ensuring accurate, real-time data transmission. This is critical for precise diagnostics, reliable telematics tracking, and error-free ECU programming.
Full Customization Flexibility
We collaborate closely with clients to design custom OBD2/OBDII connector solutions that align with their specific application, installation, and performance needs. From custom cable lengths and connector configurations to branded housing and specialized wiring, we deliver tailored solutions that drive operational efficiency.
Regulatory & Quality Assurance
Backed by ISO 9001, IATF 16949, and UL certifications, our OBD2 connectors meet global safety and quality standards. Our 100% testing protocol ensures every product is defect-free, reducing warranty claims and ensuring consistent performance for end-users.
Applications of Cactus Electronics OBD2/OBDII Connectors
Our OBD2/OBDII connectors power a wide range of automotive and fleet applications, including:
- Automotive Diagnostic Tools: Handheld scanners, code readers, and PC-based diagnostic software
- Fleet Telematics & Tracking: GPS tracking, ELD (Electronic Logging Device) integration, and fleet management systems
- ECU/TCU Tuning & Programming: Performance tuning, parameter calibration, and software updates
- Emissions Testing & Compliance: Regulatory emissions monitoring and reporting
- Aftermarket Automotive Accessories: Heads-up displays, performance monitors, and vehicle tracking devices
- Commercial & Heavy-Duty Vehicles: Trucks, buses, construction equipment, and agricultural machinery diagnostics
Customer-Centric Service & Support
Cactus Electronics prioritizes customer success at every stage, from initial design consultation to post-delivery support. Our team of automotive connectivity experts provides personalized assistance, offering design recommendations, rapid prototyping, and quick turnaround times for quotes and orders. We offer flexible order options, including small-batch prototypes, mid-volume production, and large-scale mass manufacturing, with JIT (Just-In-Time) delivery and inventory management solutions to optimize supply chain efficiency. Our 24-hour inquiry response ensures clients receive timely support, while our dedicated quality assurance team resolves any issues promptly to maintain project timelines.
Partner with Cactus Electronics for OBD2/OBDII Connector Excellence
In an industry that demands reliability, compliance, and versatility, Cactus Electronics stands out as a premier provider of OBD2/OBDII connectors and custom wiring solutions. With decades of expertise, rigorous quality control, and a commitment to innovation, we deliver products that empower automotive businesses to operate efficiently, comply with regulations, and stay ahead of technological advancements. Whether you need standard OBD2 connectors for mass production or custom harnesses for specialized applications, Cactus Electronics has the expertise, resources, and dedication to deliver solutions that exceed expectations.
Choose Cactus Electronics as your OBD2/OBDII connector partner and experience the difference of premium quality, unmatched customization, and reliable global support. Contact us today to discuss your project requirements and request a customized quote for your automotive diagnostic connectivity needs.
